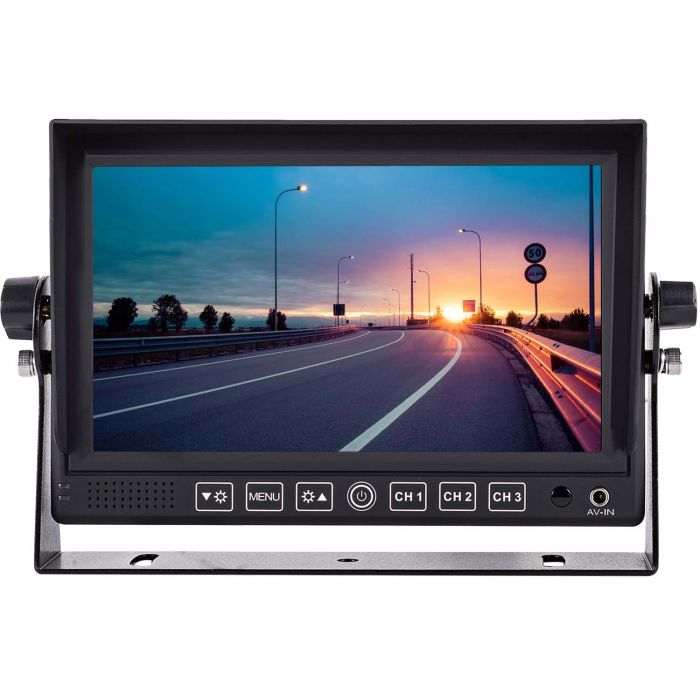

Boyo VTM7012FHD 7" TFT LCD Color Monitor with three video inputs
$299.99
In stock
SKU
VTM7012FHD
Expert Knowledge
Talk to a specialist
- 7" TFT LCD color monitor for back up camera use
- 3 RCA video inputs
- 3 trigger leads for auto camera selection
- Image rotation function to modify display settings
- Built in Speaker
- Rugged u-bracket with thumb screw angle adjustments
- Built in Sun Shield
- Swivel Mounting Base
Unit includes: 7 inch LCD monitor, Monitor Bracket, Removable sun shade, Wiring harness, Remote Control, and Instruction manual
Boyo VTM7012FHD 7 inch Full-HD Commercial RV Back Up Camera Monitor
Boyo VTM7012FHD 7 inch Full-HD Commercial RV Back Up Camera Monitor
-
Monitor Features:
- Ideal for Heavy Duty and Commercial Vehicles (Truck, RV, Van, Tractor, Trailer, Bus, Crane, Dirt Wagon, etc)
- Strong industrial U-bracket with dual mounting screws per-side
- Includes removable sun shade
- 1080p HD Digital 7 inch LCD monitor with two video inputs
- PAL / NTSC / AHD auto switching
- Resolution: 1024 x 600 x RGB
- Brightness: 250 NIT
- Power Supply: DC 9 Volts - 24 Volts
- OSD Menu (On Screen Display)
- Contrast, Color and Brightness
- 4-way image rotation function
- View Angle range; Left/Right - 65° Top - 40° Down - 15°
- Monitor inputs and Outputs:
- 3 - 4-pin back up camera inputs
- 3 - 12 volt trigger (Video 1)
- 1 - Power and ground input
- Dimensions:
- Dimensions without sun visor: 8-1/4" (W) x 5-1/2" (H) x 3/4" (D)
- Dimensions with sun visor: 8-1/4" (W) x 5-1/2" (H) x 2-3/4" (D)
| Manufacturer | Boyo |
|---|---|
| Part Number | VTM7012FHD |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 1024 x 600 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 250 Nit |
| Swivel Screen | Yes |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Built-in DVD Player | No |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in FM Modulator | No |
| Built in Speakers | Yes |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 3 Video Inputs |
| Audio Video Outputs | None |
| Composite video input | No |
| Front mounted auxiliary input | 3.5 mm audio/video input |
| USB input | No |
| SD Card input | No |
| Built in Phone Mirroring | No |
| Housing material | Plastic |
| Slide track on back | Yes |
| Mounting thread for stand mount | Yes |
| Mount included | Yes, Pedistal stand |
| Trigger wire | Yes |
| Image Flip Function | Image rotate |
| Quad Screen | No |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-24 Volt DC |
| Ac Adapter included | No |
| Headrest Shroud included | No |
| Built in Game System | No |
| Wireless Remote Control | Yes |
| Monitor Color | Black |
| Color | Black |
| Overall Height | 5.50 inches |
| Overall Length | 0.75 inches |
| Overall Width | 8.25 inches |
| Warranty | 1 Year |
| UPC Code | 850005493136 |
| Return period | 30 days |
| Exchange period | 30 days |
