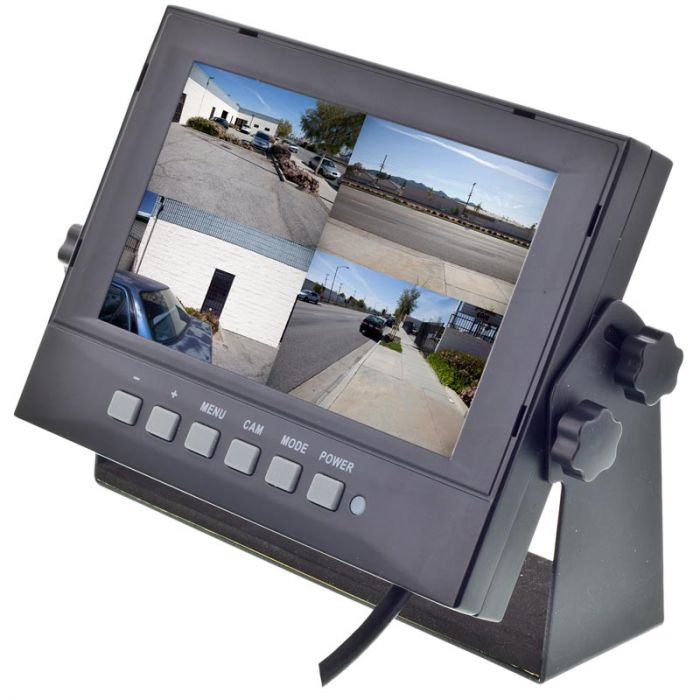

Safesight TOP-SS-D7002Q Water Proof 7 Inch Quad screen LCD monitor with 4 triggered video inputs
$320.99
Out of stock
SKU
TOP-SS-D7002Q
Expert Knowledge
Talk to a specialist
- 7" High-Resolution TFT LCD Widescreen monitor
- IP69K Waterproof monitor
- 4 Video Inputs
- Quad screen
- Adjustable Mounting Bracket
- removable sun shade
- 12-24 volt
- 4 triggered video inputs
- Perfect for Boats and Yachts or other outdoor equipment
Unit includes: 7 inch quad screen monitor, U-bracket, Adjustment screws, Foam Vibration damper, Remote control, and Instruction manual
Safesight LCDM7WP4 Water Proof 7 Inch Quad screen LCD monitor with 4 triggered video inputs features:
Safesight LCDM7WP4 Water Proof 7 Inch Quad screen LCD monitor with 4 triggered video inputs features:
- 7" High-Resolution TFT LCD Widescreen monitor
- IP69K Waterproof rating, can be completely submerged up to 1 meter of water
- Quad screen - allows you to view 4 cameras simultaneously
- 12 positive trigger input for each camera - forces the monitor to turn on and select the video input
- Each trigger can be set up with a delay - set delay time in monitor menu
- 4 - 4-pin video inputs
- Monitor can be set to circulate for a set period of time to each input on a continuous loop
- Front cam button select - toggles between each video input
- Front mode button - toggles between Quad screen / Dual screen 1/2 / Dual screen 3/4 / Tri-view 1/3/4
- Reverse image function for each video input - non reverse cameras can be used as reverse image cameras, monitor will flip image
- Sturdy metal u-bracket with foam vibration absorption padding
- Removable sun shade for use in direct sun light
- 12 - 24 volt capable
- Durable Cast metal housing with black powder coating for use in marine environments
- 500:1 contrast ratio
- 400 Nit brightness
- Horizontal viewing angle: 140 degree
- Vertical viewing angle: 110 degree
- 6 foot power and video input cable
- NTSC/PAL
- 2 Video Inputs
- Resolution: 800 x 480
- Dimensions: 7-7/8" (W) x 5-3/4" (H) x 1-5/8" (D)
| Manufacturer | Accelevision |
|---|---|
| Part Number | TOP-SS-D7002Q |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD back light type | LED |
| LCD Screen Brightness | 400 Nit |
| Swivel Screen | Yes |
| Touchscreen | No |
| Modulation | NTSC and PAL |
| Anti-Shock | Yes |
| Headphone Transmitter | No |
| Headphone Jack | No |
| Built in FM Modulator | No |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | No - VGA input |
| Audio Video inputs | 4 Video Input |
| Composite video input | Yes |
| Front mounted auxiliary input | None |
| USB input | No |
| SD Card input | No |
| Housing material | Metal |
| Slide track on back | No |
| Mounting thread for stand mount | No |
| Mount included | Yes, Pedistal stand |
| Trigger wire | Yes |
| Image Flip Function | Yes, reverse image flip |
| Quad Screen | Yes |
| Cigarette Lighter Cord Included | No |
| Operation Voltage | 12-24 Volt DC |
| Ac Adapter included | No |
| Headrest Shroud included | No |
| Wireless Remote Control | Yes |
| Monitor Color | Black |
| Color | Black |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
