Pyle PLCMTR71 1/4" CMD Commercial Weatherproof Rear View Back Up Camera System
$123.99
In stock
SKU
PLCMTR71
Expert Knowledge
Talk to a specialist
- Complete rearview commercial camera system
- 7 inch Back up monitor with sun shield and mounting stand
- 1/4" CMD Commercial type back up camera with infrared illumination
- Reverse image for rear view use
- IR Infrared 18 LEDs for Night Vision 32 ft distance
- Includes 50 foot 4-pin cable

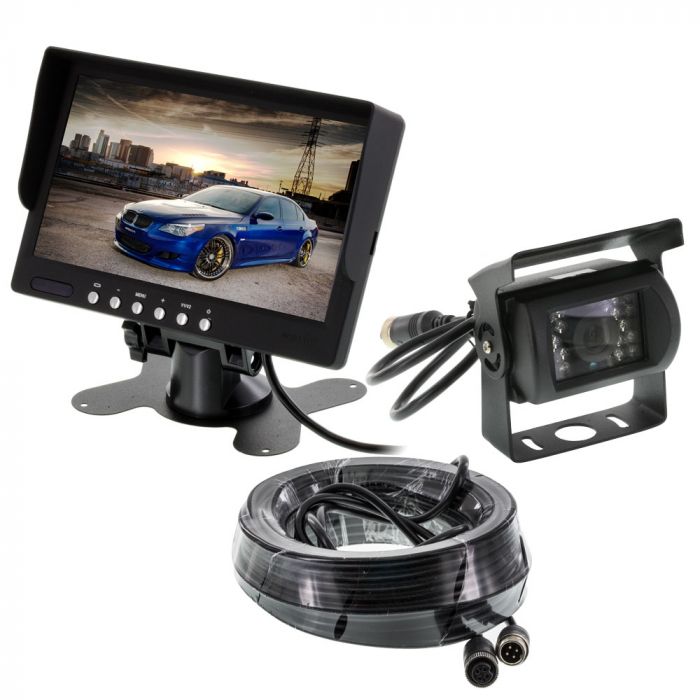

Unit includes: Back up camera, Mounting hardware, 50 Foot 4-pin cable, 4-pin to RCA adapter cable and Instruction manual
Pyle PLCMTR71 1/4" CMD Commercial Weatherproof Rear View Back Up Camera System
Pyle PLCMTR71 1/4" CMD Commercial Weatherproof Rear View Back Up Camera System
- Monitor Features:
- 7" Active Matrix LCD Screen with triggered input for back up camera systems
- LED backlight for excellent brightness with minimal power requirements
- 800 x 480 resolution
- 400 NIT brightness
- Built-in sun shield to prevent screen glare (Non-removable)
- Pedestal Stand for top dash mounting
- 2 RCA video inputs
- Positive trigger for automatic turn on and video selection
- Image flip function for back up camera use or non-normal installation positions
- Operates on 12-24 Vdc
- Inputs and Outputs:
- (2) - RCA video inputs
- (1) - 12 volt positive trigger input
- (1) - 12 volt power and ground input
- Dimensions:
- Dimensions (includes sun shield): 6-7/8" (W) x 2" (D) x 4-1/2" (H)
- Commercial type back up camera with infrared illumination
- Aluminum Alloy housing with powder coated finish
- Reverse image for rear view use
- 1/4" CMD Image Sensor
- IR Infrared 18 LEDs for Night Vision 32 ft distance
- Adjustable vertical axis with 2 retaining screws
- Includes 50 foot 4-pin cable
- 4 Pin Connector - RCA Adapter is included
- Parking grid lines with cut wire to turn them off
- Operates on 12-24 Vdc
- 420 TV lines or resolution
- Effective Pixels: 580 x 540
- 170° Wide Angle Camera - Blind Spot reduced
- Minimum Illumination: 0 Lux with IR LED's On
- Operating Temperature: -20° ~ +70° C (RH 95% Max)
- Power Supply: DC 12V-24V
- Waterproof Rating: Ip68
- Dimensions: 3-1/8" (W) x 2-1/4" (D) x 2-7/8" (H)
- Camera Features:
- Image sensor specifications:
- Dimensions:
| Manufacturer | Pyle |
|---|---|
| Part Number | PLCMTR71 |
| LCD Screen Size | 7 inch - 8 inch |
| Native Screen Resolution | 800 x 480 |
| Widescreen Display | 16:9 Widescreen Display |
| LCD Screen Brightness | 400 Nit |
| LCD back light type | LED |
| Auto Dimming | No Dimming |
| Trigger wire | Yes |
| Modulation | NTSC only |
| Slide track on back | Yes |
| Image Flip Function | Image rotate |
| Built in Speakers | No |
| Mount included | Yes, Pedistal stand |
| Auto on/off | Yes |
| Cigarette Lighter Cord Included | No |
| Audio Video inputs | 2 Video Inputs |
| Wireless Remote Control | Yes |
| Monitor Type | Stand alone monitor |
| Back up camera type | Surface Mount Camera |
| Product Options | No Compass and Temperature Guage |
| Homelink | No Homelink transmitter |
| Built in Bluetooth | No Bluetooth |
| Reverse Image | Yes - Reverse Image |
| Camera Sensor type | CMD |
| Camera diameter | 1/4" |
| Viewing Angle | 170 degrees |
| Parking grid lines | Yes |
| Built in Microphone | No |
| Infrared Illumination | Yes |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Battery Powered | Hard wired |
| Connector Type | RCA Cable |
| Wireless Transmission | Wired connection |
| Color | Black |
| Operation Voltage | 12-24 Volt DC |
| Warranty | 1 Year |
| UPC Code | 068888750516 |
| Return period | 30 days |
| Exchange period | 30 days |
