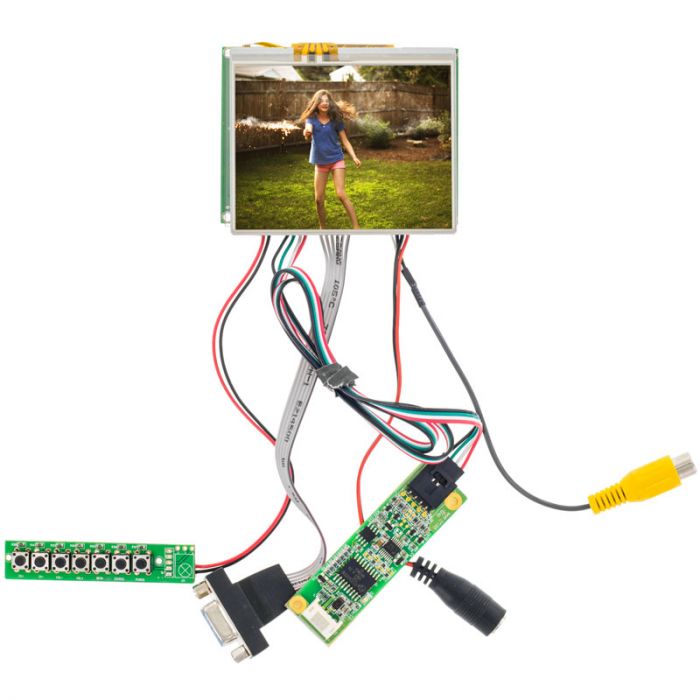

Accelevision LCD35QVGATS 3.5" LCD module with VGA input and USB touchscreen
$192.99
In stock
SKU
LCD35QVGATS
Expert Knowledge
Talk to a specialist
- 3.5 inch universal raw LCD module for use in any custom application
- VGA input for use with computers or chart plotters or any other high resolution device
- USB Touchscreen with drivers for Mac and PC operating systems
- Composite RCA video input
Unit includes: 3 inch raw module and Wiring Harness
Accelevision LCD35QVGATS 3.5" LCD module with VGA input
Accelevision LCD35QVGATS 3.5" LCD module with VGA input
- Features:
- 3.5 inch universal raw LCD module for use in any custom application
- VGA input for use with computers or chart plotters or any other high resolution device
- USB Touchscreen with drivers for Mac and PC operating systems
- Composite RCA video input
- LED back lite for minimal power consumption and uniform back light intensity
- Board can be mounted to one side for thinner profile
- Operates on 10 - 12 volts DC
- NTSC/PAL auto switching
- On screen menu with adjustments for color, brightness, tint, hue, etc
- Small control board with buttons for power, menu, and OSD controls
- Resolution: 320 (H) x 240 (V)
- Power Source: DC 12V @ 275mA
- Brightness: 350 NIT
- Dimensions: 2-1/8" (H) x 2-13/16" (W) x 9/16" (D)
- Inputs and outputs
- 1 - RCA Composite video input
- 1 - VGA input
- 1 - DC power jack
| Manufacturer | Accelevision |
|---|---|
| Part Number | LCD35QVGATS |
| LCD Screen Size | 3 inch - 4 inch |
| Native Screen Resolution | 320 x 240 |
| Widescreen Display | 4:3 Normal Aspect Ratio |
| LCD back light type | LED |
| LCD Screen Brightness | 350 Nit |
| Touchscreen | Yes |
| Modulation | NTSC and PAL |
| Built in Speakers | No |
| HDMI input | No |
| VGA input | Yes - VGA input |
| Audio Video inputs | 1 Video Input |
| Composite video input | Yes |
| USB input | No |
| SD Card input | No |
| Trigger wire | No |
| Image Flip Function | No |
| Operation Voltage | 12-15 Volt DC |
| Ac Adapter included | No |
| Wireless Remote Control | No |
| Warranty | 1 Year |
| California Proposition 65 |  Warning:This product can expose you to chemicals including lead, which is [are] known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. |
| Return period | 30 days |
| Exchange period | 30 days |
