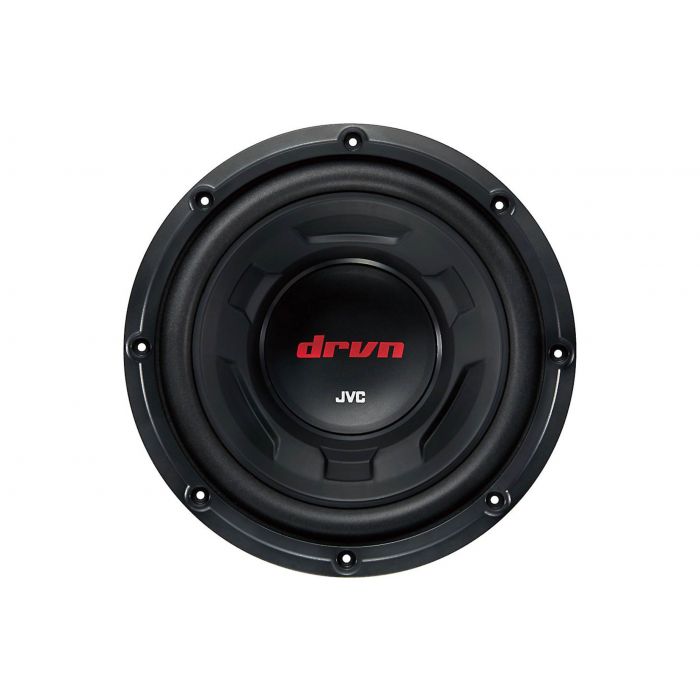

JVC CW-DR104 10 Inch Single Voice Coil Subwoofer with 1300 Watts Max Power
$119.99
In stock
SKU
CW-DR104
Expert Knowledge
Talk to a specialist
- 10" Subwoofer with single 4 ohm voice-coil
- Heavy Duty 61.4 ounce magnet and motor structure for extreme power handling and output
- 6-layer copper voice coil with aluminum former, improves heat resistance
- 300 Watt nominal continuous power handling RMS
- Sensitivity: 82 dB @ 1Watt / 1meter
Unit includes: 10 inch Car subwoofer driver and Instruction manual
JVC CW-DR104 10 Inch Single Voice Coil Subwoofer with 1300 Watts Max Power
JVC CW-DR104 10 Inch Single Voice Coil Subwoofer with 1300 Watts Max Power
-
Features:
- 10" Subwoofer with single 4 ohm voice-coil
- Heavy Duty 61.4 ounce magnet and motor structure for extreme power handling and output
- 6-layer copper voice coil with aluminum former, improves heat resistance
- Large yoke with air convection generated from the vibration of the diaphragm is effectively used to cool the voice coil
- Graduated Pleat Damper that minimizes mechanical damage and dramatically improves the damper’s durability
- Nickel plated 8 gauge spring compression wire terminal
- Polypropylene cone to produce more accurate sound
- High-Density Foam Surround to keep the cone in precise alignment
- Stamped Steel Frame to ensure durability
- High-temperature tolerance adhesives resist thermal failure
- Power Handling Max:
- 1,300 Watt maximum power handling
- Power Handling RMS:
- 300 Watt nominal continuous power handling RMS
- Quick Specs:
- Impedance: 4 Ohm per coil
- Frequency response: 44 Hz– 300 Hz
- Sensitivity: 82 dB @ 1Watt / 1meter
- Dimensions:
- Mounting depth: 5-1/4 inches
- Cutout diameter: 9-1/16 inches
- Diameter: 10-3/16 inches
- Optimum enclosures:
- Ported: 0.8 cubic feet
- Sealed: 0.65 cubic feet
| Manufacturer | JVC |
|---|---|
| Part Number | CW-DR104 |
| Driver Size | 10 inch |
| Subwoofer Shape | Round |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| FS | 34 |
| QES | 0.362 |
| QMS | 9.53 |
| QTS | .0348 |
| RE | 4 |
| VAS | 1.10 ft3 |
| Xmax (millimeters) | 6.3 |
| Sensitivity | 82 dB |
| Frequency Response | 44Hz - 300 Hz |
| Sub enclosure type | Ported / Vented, Sealed |
| Power Handling RMS | 300 Watts |
| Power Handling Peak | 1300 watts |
| Shallow Mount Subwoofer | No |
| Mounting Depth | 5.25 Inches |
| Cutout Dimensions | 9.06 Inches |
| Sealed Enclosure Recommended Size | 0.65 |
| Ported Enclosure Recommended Size | 0.80 |
| Color | Black |
| Warranty | 1 Year |
| Sold as | Individually |
| Return period | 30 days |
| Exchange period | 30 days |
